Air Compressor Electric Motor 56 Frame 1 Phase 5/8" Shaft For General Equipment
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product

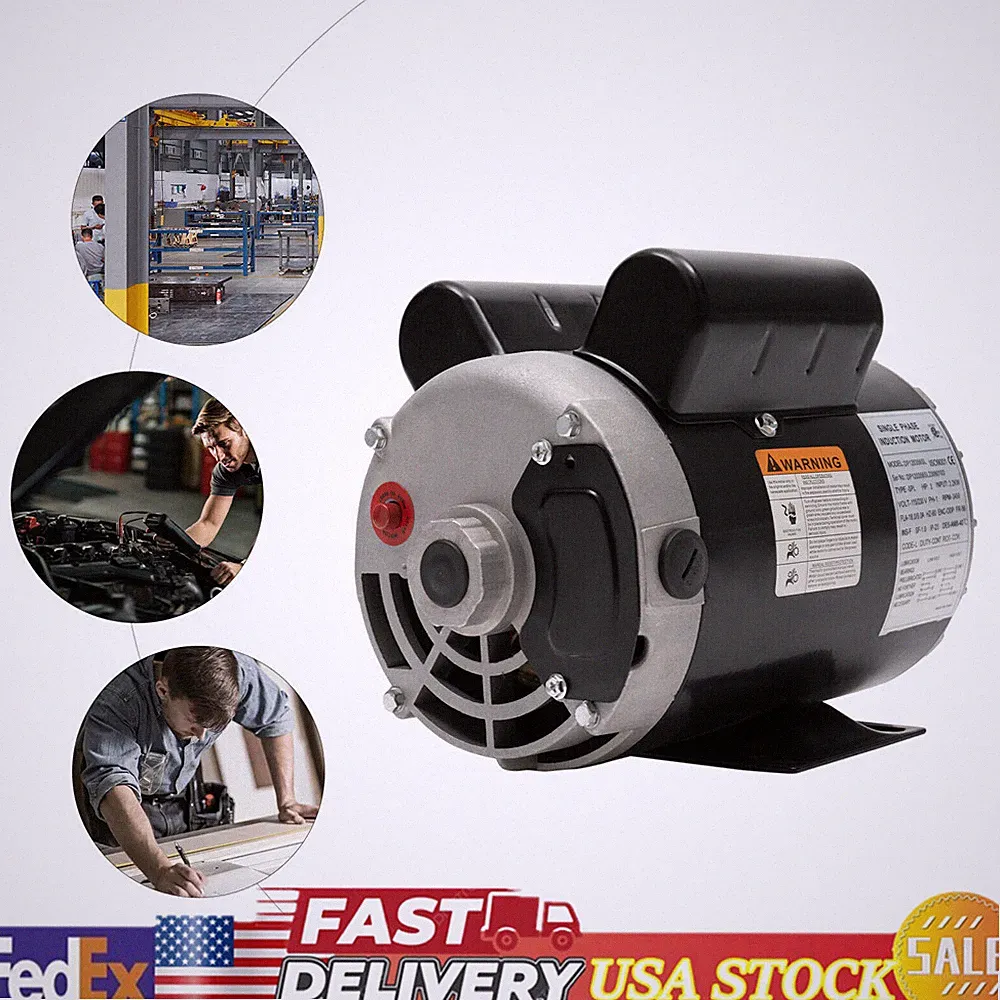

This BFO electric motor is a 3.7 HP single-phase replacement unit, specifically designed for air compressors and general equipment. It features a 56 frame size with a 5/8" keyed shaft, operating at 3450 RPM on 60HZ AC frequency with 17.2 Full Load Amps. The motor has an Open Drip Proof (ODP) enclosure and an F insulation class, offered as a direct replacement part with a 1-year warranty.
Our take
This BFO electric motor presents a solid option for replacing a worn-out unit on an air compressor or other general equipment. The 3.7 HP rating is suitable for many workshop compressors, and the 56 frame with a 5/8" keyed shaft is a common configuration, making it a good direct replacement. Operating at 3450 RPM, it should provide good power delivery. The Open Drip Proof enclosure is fine for dry indoor use, but users in dusty or damp environments might prefer a totally enclosed fan-cooled (TEFC) motor for better protection. It's noted as non-reversible, so ensure it matches your application's rotational needs.
Pros & Cons
Pros
- 3.7 HP rated load
- Direct replacement fitment
- Standard 56 frame size
- 1-year manufacturer warranty
- Single-phase power
Cons
- Open Drip Proof (ODP) enclosure
- Non-reversible motor
- No instruction included
Specifications
- AC Frequency Rating 60HZ
- Base RPM 3450 RPM
- Brand BFO
- California Prop 65 Warning California Prop 65 Warning
- Current Type AC
- Duty Cont. Compressor
Show all 33 specifications
- Enclosure Type
- Open Drip Proof (ODP)
- Fitment Type
- Direct Replacement
- Frame Size
- 56
- Full Load Amps
- 17.2
- IEC Frame Size
- 56
- Insulation Class
- F
- Manufacturer Part Number
- CJP4DO
- Manufacturer Warranty
- 1 Year
- Model
- 3.7 HP Electric Motor
- Mounting Type
- Base-Mounted
- NEMA Frame Suffix
- 56
- Note
- No Instruction Included
- Notice
- This is aftermarket replcement part., California Prop 65 Warning.
- Phase
- Single Phase
- Quantity
- 1 x Compressor Electric Motor
- Rated Load (HP)
- 3.7 HP
- Reversible/Non-Reversible
- Non-Reversible
- Service Factor
- 1.0
- Shaft Diameter
- 5/8"
- Shaft Length
- 1.88"
- Shaft Type
- Keyed
- Standard Size Keyway
- 3/16"
- Surface Finish
- Brand New
- Unit Quantity
- 1
- Unit Type
- Electric Motor
- Voltage
- 230 Volts
- Country of Origin
- China
